Embed Bow Chat

Use the Bag of Words API to add a Bow-powered chat or completion panel to your own product. Your UI creates or reuses a report, streams a completion with fetch, and renders Server-Sent Events as they arrive. This guide is for internal tools, trusted admin panels, and backend-proxied production apps.

What You Need

A Bag of Words base URL — e.g. http://localhost:3000 or https://bow.example.com
A bow_... API key created in Bag of Words Settings → API Keys
Optional data source or agent IDs to attach to the report
A browser or backend that can call the Bow API

Do not include /api in the user-facing base URL. Build the API base internally:

const bowUrl = inputBowUrl.replace(/\/+$/, "").replace(/\/api$/i, "");
const apiBase = `${bowUrl}/api`;

Recommended Architecture

For a private internal app, the browser can call Bow directly with an API key. For a public app, proxy requests through your own backend:

Browser UI → Your backend → Bag of Words API

Your backend should store the Bow API key, enforce your app’s authorization rules, and stream the Bow SSE response back to the browser. Do not expose long-lived Bow API keys in public client-side code.

Minimum Streaming Flow

Create a report with the data sources your chat should use.
POST a streaming completion to that report.
Parse SSE frames from the response body.
Render assistant text, reasoning, tool progress, and errors from the events.

Reports are the scope for data sources. Attach data sources when creating or updating the report — not in the completion prompt mentions.

Create a Report

Create a report when the user starts a new chat session or when you need a temporary scratch report.

POST /api/reports
Authorization: Bearer bow_...
Content-Type: application/json

{
  "title": "Customer Support Chat",
  "data_sources": ["agent-or-data-source-id"]
}

async function createReport(apiBase: string, apiKey: string, dataSourceIds: string[]) {
  const response = await fetch(`${apiBase}/reports`, {
    method: "POST",
    headers: {
      Authorization: `Bearer ${apiKey}`,
      "Content-Type": "application/json",
      Accept: "application/json",
    },
    body: JSON.stringify({
      title: "Embedded Bow Chat",
      data_sources: dataSourceIds,
    }),
  });

  if (!response.ok) throw new Error(`Create report failed: ${response.status}`);
  return response.json() as Promise<{ id: string }>;
}

Stream a Completion

Use fetch, not EventSource, because the completion stream is a POST request with custom headers.

POST /api/reports/{report_id}/completions
Authorization: Bearer bow_...
Content-Type: application/json
Accept: text/event-stream

{
  "prompt": {
    "content": "Show me the top customers this month",
    "mentions": [],
    "mode": "chat"
  },
  "stream": true
}

async function streamCompletion(params: {
  apiBase: string;
  apiKey: string;
  reportId: string;
  prompt: string;
  signal?: AbortSignal;
  onEvent: (event: BowSseEvent) => void;
}) {
  const response = await fetch(
    `${params.apiBase}/reports/${encodeURIComponent(params.reportId)}/completions`,
    {
      method: "POST",
      headers: {
        Authorization: `Bearer ${params.apiKey}`,
        "Content-Type": "application/json",
        Accept: "text/event-stream",
      },
      body: JSON.stringify({
        prompt: { content: params.prompt, mentions: [], mode: "chat" },
        stream: true,
      }),
      signal: params.signal,
    },
  );

  if (!response.ok) {
    const detail = await response.text();
    throw new Error(`Completion failed: ${response.status} ${detail}`);
  }

  if (!response.body) throw new Error("Streaming response body is unavailable.");

  const reader = response.body.getReader();
  const decoder = new TextDecoder();
  const parser = createSseParser(params.onEvent);

  while (true) {
    const { done, value } = await reader.read();
    if (done) break;
    parser.feed(decoder.decode(value, { stream: true }));
  }

  parser.feed(decoder.decode());
  parser.flush();
}

SSE Format

Bow sends standard Server-Sent Events:

event: completion.started
data: {"event":"completion.started","data":{"system_completion_id":"..."}}

event: block.delta.token
data: {"event":"block.delta.token","data":{"block_id":"...","field":"content","token":"Hello"}}

data: [DONE]

A blank line ends an event. Multiple data: lines belong to the same event and should be joined with \n. The data: payload is an envelope — parse it like this:

const parsed = JSON.parse(dataString);
const payload = parsed.data ?? parsed;

data: [DONE] means the stream is complete.

Tiny SSE Parser

type BowSseEvent = {
  event: string;
  payload: unknown;
  raw: string;
  receivedAt: string;
  done?: boolean;
  malformed?: boolean;
};

function createSseParser(onEvent: (event: BowSseEvent) => void) {
  let buffer = "";
  let eventName = "message";
  let dataLines: string[] = [];
  let rawLines: string[] = [];

  function dispatch() {
    if (rawLines.length === 0 && dataLines.length === 0) return;

    const dataString = dataLines.join("\n");
    const raw = `${rawLines.join("\n")}\n\n`;
    const receivedAt = new Date().toISOString();

    if (dataString === "[DONE]") {
      onEvent({ event: "[DONE]", payload: "[DONE]", raw, receivedAt, done: true });
    } else {
      try {
        const parsed = JSON.parse(dataString);
        onEvent({ event: eventName, payload: parsed.data ?? parsed, raw, receivedAt });
      } catch (error) {
        onEvent({
          event: eventName,
          payload: { error: String(error), data: dataString },
          raw,
          receivedAt,
          malformed: true,
        });
      }
    }

    eventName = "message";
    dataLines = [];
    rawLines = [];
  }

  return {
    feed(chunk: string) {
      buffer += chunk;

      while (true) {
        const newlineIndex = buffer.search(/\r\n|\n|\r/);
        if (newlineIndex === -1) break;

        const line = buffer.slice(0, newlineIndex);
        const newline = buffer.slice(newlineIndex).match(/^\r\n|\n|\r/)?.[0] ?? "\n";
        buffer = buffer.slice(newlineIndex + newline.length);

        if (line === "") { dispatch(); continue; }

        rawLines.push(line);
        if (line.startsWith(":")) continue;

        const colonIndex = line.indexOf(":");
        const field = colonIndex === -1 ? line : line.slice(0, colonIndex);
        const value = colonIndex === -1 ? "" : line.slice(colonIndex + 1).replace(/^ /, "");

        if (field === "event") eventName = value || "message";
        if (field === "data") dataLines.push(value);
      }
    },
    flush() {
      if (buffer) { rawLines.push(buffer); buffer = ""; }
      dispatch();
    },
  };
}

Event Reference

Handle unknown events gracefully — the API may add events over time.

Event	Meaning	UI suggestion
`completion.started`	The completion run has started	Mark the chat as streaming and store the completion ID
`block.upsert`	A report block was created or updated	Insert or update the matching assistant, reasoning, or tool block
`block.delta.token`	A token-level text delta arrived	Append `payload.token` to the target block field
`block.delta.text`	A full text replacement arrived	Replace the target block field with `payload.text`
`decision.partial`	The model emitted an intermediate reasoning/action decision	Show provisional reasoning or the planned tool/action
`decision.final`	The model finalized a decision or answer	Mark the decision block complete and render final text
`tool.started`	A tool call started	Show a compact running tool row
`tool.progress`	A tool call reported progress	Update the tool row summary or progress details
`tool.finished`	A tool call finished	Mark the tool row success/error and expose result JSON behind a disclosure
`completion.finished`	The completion run finished	Mark the chat success unless the payload reports an error
`completion.error`	Bow reported a completion-level error	Stop streaming and show the error message
`llm.error`	The LLM provider or model call failed	Stop streaming and show the error message
`[DONE]`	The SSE stream ended	Close the stream and enable input again

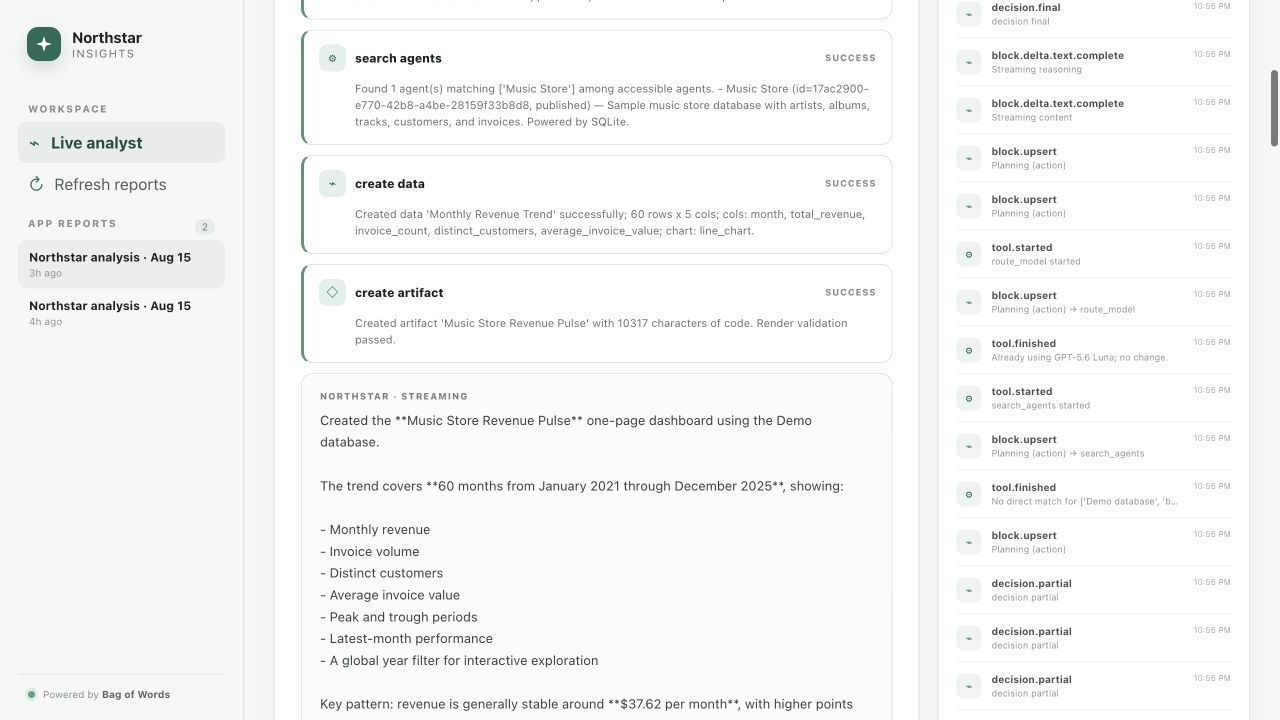

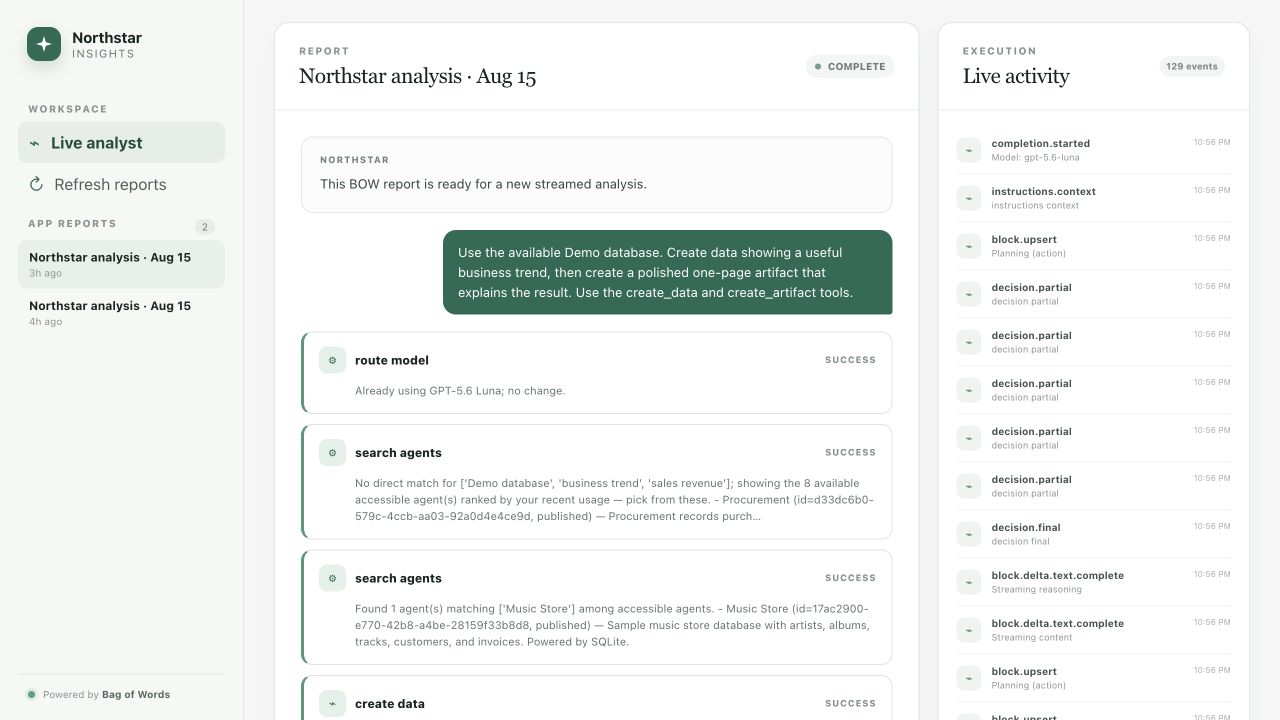

Rendering a Chat UI

Keep the UI reducer small:

Store status: idle, streaming, success, or error
Store blocks by id
Append block.delta.token for assistant text
Replace text on block.delta.text
Show reasoning inside a collapsible disclosure
Show tools as compact rows with name, status, and summary
Keep raw JSON behind a disclosure for tool payloads
Keep the raw SSE log available in a debug tab

function applyBowEvent(state: ChatState, event: BowSseEvent) {
  const payload = event.payload as Record<string, any>;

  switch (event.event) {
    case "completion.started":
      state.status = "streaming";
      state.systemCompletionId = payload.system_completion_id;
      break;

    case "block.delta.token": {
      const blockId = payload.block_id ?? "streaming";
      const block = state.blocks[blockId] ??= { content: "" };
      if (payload.field === "content") block.content += payload.token ?? "";
      if (payload.field === "reasoning") block.reasoning = `${block.reasoning ?? ""}${payload.token ?? ""}`;
      break;
    }

    case "tool.started":
    case "tool.progress":
    case "tool.finished":
      state.tools[payload.tool_call_id ?? payload.tool_name ?? "tool"] = payload;
      break;

    case "completion.error":
    case "llm.error":
      state.status = "error";
      state.error = payload.message ?? payload.error ?? JSON.stringify(payload);
      break;

    case "completion.finished":
    case "[DONE]":
      if (state.status !== "error") state.status = "success";
      break;
  }
}

Optional API Requests

Validate an API key:

GET /api/users/whoami
Authorization: Bearer bow_...

Load data sources or agents for a picker:

GET /api/mentions/available?categories=data_sources
Authorization: Bearer bow_...

Update a report when the user changes selected data sources:

PUT /api/reports/{report_id}
Authorization: Bearer bow_...
Content-Type: application/json

{
  "data_sources": ["agent-or-data-source-id"]
}

Error Handling

Status	Meaning
`400`	Invalid request or no default LLM model configured
`401`	Missing or invalid API key
`403`	The key does not have permission for this resource
`404`	Report not found
Network / CORS	The browser could not reach Bow or the server does not allow the origin
Abort	User stopped the stream — treat as controlled cancellation, not a crash
Malformed SSE	Keep the raw frame and show a debug-friendly parse error

Copy-Paste cURL

BOW_URL='https://bow.example.com'
BOW_API_KEY='<paste-api-key>'
API_BASE="$BOW_URL/api"

REPORT_ID="$(curl -sS -X POST "$API_BASE/reports" \
  -H "Authorization: Bearer $BOW_API_KEY" \
  -H "Content-Type: application/json" \
  --data-raw '{
    "title": "Embedded Bow Chat",
    "data_sources": []
  }' | jq -r '.id')"

curl -N -X POST "$API_BASE/reports/$REPORT_ID/completions" \
  -H "Authorization: Bearer $BOW_API_KEY" \
  -H "Content-Type: application/json" \
  -H "Accept: text/event-stream" \
  --data-raw '{
    "prompt": {
      "content": "Show me a summary of this report",
      "mentions": [],
      "mode": "chat"
    },
    "stream": true
  }'

Production Checklist

Proxy public integrations through your backend
Keep Bow API keys server-side for public apps
Use AbortController for the Stop button
Persist report IDs if a chat should resume later
Attach data sources through report creation or update
Keep mentions: [] unless your integration intentionally supports Bow prompt mentions
Log raw SSE frames for support and debugging
Render unknown future events without crashing
